⚙ THÔNG SỐ CƠ BẢN:

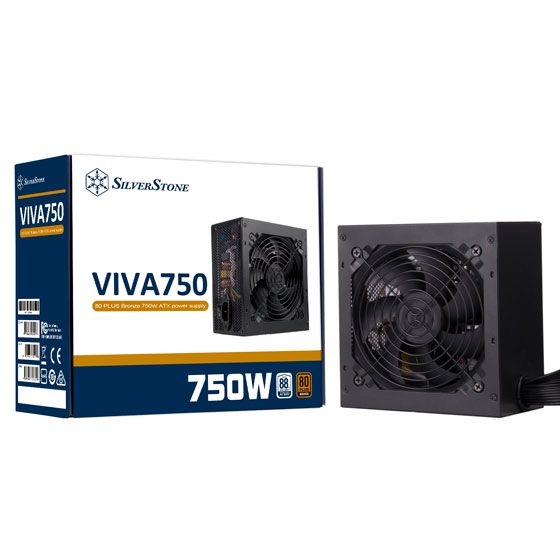

- Sản phẩm: Nguồn SilverStone 750W
- Hãng sản xuất:SilverStone
- Bảo hành: 36 tháng
- High efficiency with 80 PLUS Bronze certification
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Silent running 120mm fan with 18 dBA minimum
- PCIe 8 pin and PCIe 6 pin connectors support
- All black flat cables
- Multiple protection circuitry
- Active PFC
-
MÔ TẢ SẢN PHẨM
Model (Safety Certification) SST-ET750 Color Black (Lead-Free Paint) Max. DC Output 750W Power Density 415W per liter Output +3.3V +5V +12V +5VSB -12V Max. (Amps) 20A 20A 72A 3.0A 0.3A Peak (Amps) / / / / / Min. (Amps) 2.1A 2.1A 10.8A 0.42A 0.05A Range (%) ±5% ±5% ±5% ±5% ±10% Line Reg. (%) ±1% ±1% ±1% ±1% ±1% Ripple (mVp-p) 50mV 50mV 120mV 50mV 120mV Combined +3.3V & +5V 120W Combined +12V 740W Input Voltage 100 ~ 264 Vrms Input Frequency Range 47Hz ~ 63Hz PFC Active PFC (PF > 0.9 at full load) Efficiency 82% ~ 85% (at 20% ~ 100% loading) MTBF 100,000 hours Operating Temperature 0°C ~ 40°C Protection Over Power Protection Over Voltage Protection Short Circuit Protection Connectors 1 x 24 / 20-Pin Motherboard Connector (500mm) 2 x 4-Pin + 4-Pin ATX 12V Connector (650mm / 150mm) 4 x 8 / 6-Pin PCIe Connector ("500mm / 100mm" x 2) 6 x SATA Connector ("500mm / 150mm / 150mm" x 2) 6 x 4-Pin Peripheral Connector ("500mm / 150mm / 150mm" x 2) Cooling System Single 120mm Silent Fan Noise Level 18dBA Minimum Certification 80 PLUS Bronze Form Factor ATX (PS2) Dimension 150 mm (W) x 86 mm (H) x 140 mm (D) Weight 1.77 Kg Other GPU Support List Compatible with ATX12V v2.4
