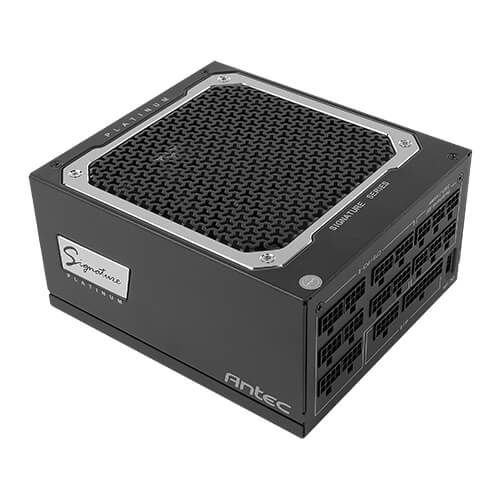

Nguồn Antec SP1300EC | 1300W, 80 plus platinum, full range, full modular

⚙ THÔNG SỐ CƠ BẢN:

• Thương hiệu: Antec
• Tên sản phẩm: SP1300EC
• Công suất: 1300W
• Chứng nhận hiệu suất: 80 Plus Platinum
• MÔ TẢ SẢN PHẨM















  Thông số kỹ thuật





  Product Name	SP1300 Platinum
  Model Name	X8000A506-18
  Type	ATX
  Modular	Fully
  Dimension (W x L x H)	150 x 170 x 86mm
  Warranty	10 years
  Input Voltage	100-240
  Input Current	15A ~ 7.5A
  Input Frequency Range	47Hz ~ 63Hz
  PFC	APFC PFC at half / full load: >0.95 at AC 110v 60Hz(typical) >0.90 at AC 230v 50Hz(typical)
  Power Good Signal	100 ~ 500mS
  Efficiency	At 20% / 50% / 100% load AC 115V internal, the power efficiency should be at least 90% / 92% / 89%.
  Protection	OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
  Output Capacity	1300W
  Operation Temperature	0 ~ 40°C
  Regulatory	cTUVus / TUV / CB [IEC62368 Compliant] / CE / FCC / BSMI / 3C / KC / RCM
  Fan	135 x 135 x 25(mm) FDB Silent Fan
  Certifications	80 Plus Platinum
  Connector	1 x MB 24(20+4) Pin
  	2 x 8(4+4) Pin EPS 12V
  	12 x 8(6+2) Pin PCI-E
  	14 x SATA
  	5 x Molex
  	1 x FDD
  UPC#	0-761345-11705-0 SP1300 0-761345-11706-7 SP1300 AU 0-761345-11707-4 SP1300 EC 0-761345-11708-1 SP1300 GB 0-761345-11709-8 SP1300 JP
  Net Weight	2.12 Kgs
  Gross Weight	4.05 Kgs
