- P/N: CA-1E7-00M1WN-05
- Series: Core

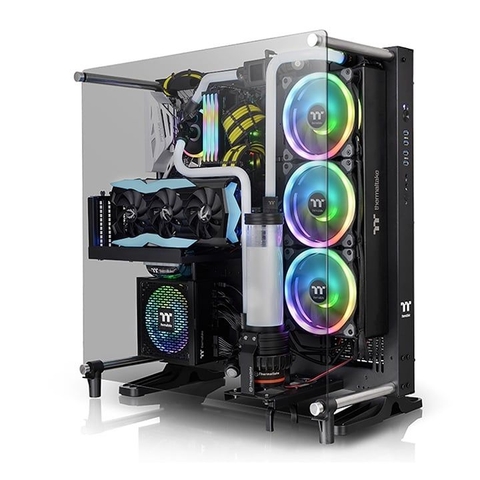

- Model: Core P5 TG V2 Black
- Case Type: Mid Tower
- Dimension (H x W x D): 608 x 333 x 570 mm (23.9 x 13.1 x 22.4 inches)
- Net Weight: 16.3 kg
- Panel: Tempered Glass x 1 (5mm thickness)
- Color: Black
- Material: SPCC
- Drive Bays:
- Accessible: 1 x 3.5’’ or 2.5’’ (HDD tray); 2 x 2.5” or 3.5”(HDD Bracket)
- Hidden: 3 x 3.5’’ or 2.5’’ (Behind the M/B tray)
- Expansion Slots: 8
- Motherboards:
- 6.7” x 6.7” (Mini ITX)
- 9.6” x 9.6” (Micro ATX)
- 12” x 9.6” (ATX)
- I/O Port: USB 3.0 x 4, HD Audio x 1
- PSU: Standard PS2 PSU (optional)
- Fan Support (Left Side):
- 4 x 120mm
- 3 x 140mm
- Radiator Support (Left Side):
- 1 x 480mm
- 1 x 420mm
- Clearance:
- CPU Cooler Height Limitation: 180mm
- VGA Length Limitation: 280mm (With Reservoir), 320mm (Without Reservoir)
- PSU Length Limitation: 200mm
