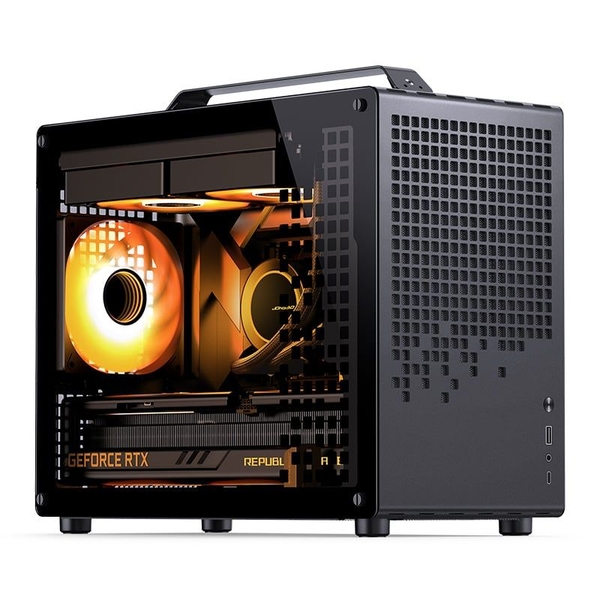

| Model | Z20 |
| Color | Black |
| Dimensions (w/o handle/feet) |
370mm * 186mm * 295mm (depth/width/height) |
| Dimensions (with handle/feet) |
382mm * 198mm * 335mm (depth/width/height) |
| Case Material |
SPCC Steel, Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX |
| Drive Bay (2.5" SSD) |
Up to 3, depends on other hardware configurations |
| Drive Bay (3.5" HDD) |
Up to 1, depends on other hardware configurations |
| Front IO Port |
USB 3.2 Gen 1 Type-A * 1, USB 3.2 Gen 2 Type-C * 1, AUDIO * 1 & MIC * 1 |
| Fan Support |
Top: 120mm * 2 / 140mm * 2; Rear: 120mm * 1 / 92mm * 1; Bottom: 120mm * 2 / 140mm * 2, depends on other hardware configurations |
| Radiator Support | Top, up to 240mm |
| ATX PS2 PSU Clearance |
Up to 180mm, recommended length ≤140mm, depends on other hardware configurations (Refer to page 11) |
| SFX PSU Support | SFX / SFX-L |
| CPU Air Cooler Clearance |
164mm MAX (Intel CPU) or 163mm MAX (AMD CPU) |
| GPU Clearance |
Up to 363mm, depends on other hardware configurations |
| Weight | N.W. 5kg / G.W. 6.5kg |
