Thông số kỹ thuật
- Form Factor: Mid Tower
- Hỗ trợ Mainboard: Mini ITX / Micro ATX / ATX / CEB / E-ATX
- Kích thước (WxHxD): 268 x 530 x 512 mm (10.6 x 20.9 x 20.2 inch)
- I/O Panel: 1 x Type C Gen 2, 2 x USB 3.0, jack audio 4 cực, nút reset
- Khay ổ cứng 3.5": 2
- Khay ổ cứng 2.5": 2+2 (có thể chuyển đổi từ khay 3.5")
- Khe mở rộng: 7 (có thể chuyển đổi khe ngang thành khe dọc)
- Hỗ trợ GPU dọc: Có
-

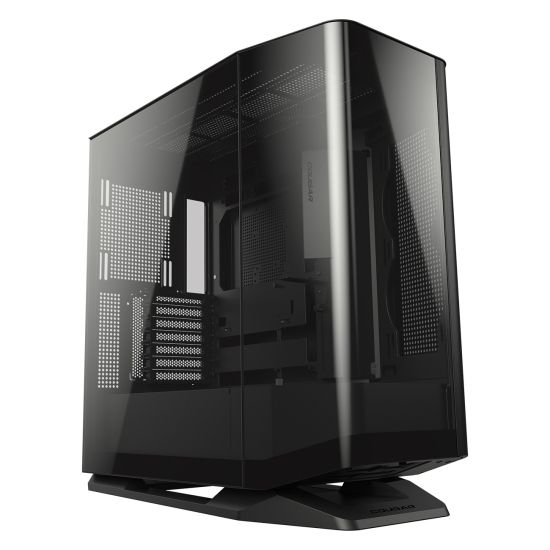

Product Name FV270 / FV270 (White) Case Form Factor Mid Tower Motherboard Type Mini ITX / Micro ATX / ATX / CEB / E-ATX Dimensions (WxHxD) 268 x 530 x 512 (mm)
10.6 x 20.9 x 20.2 (in)I/O Panel Type C Gen 2 x 1, USB 3.0 x 2, 4 Pole Headset Audio Jack, Reset Button 3.5" Drive Bay 2 2.5" Drive Bay 2+2 (converted from 3.5" drive bays) Expansion Slots 7 (horizontal slots can be converted into vertical slots) Vertical GPU Support Yes Cooling Fan Support
Top 120mm x 3 / 140mm x 2 M/B Side 120mm x 2 / 140mm x 2 PSU Shroud 120mm x 2 / 140mm x 2 Bottom 120mm x 1 Rear 120mm x 1 / 140mm x 1 Pre-installed Fans
Bottom 120mm Reversed ARGB PWM fan x 1 Speed 500-1200 ± 10% Connector 5V 3 Pin (ARGB) / 4 Pin (Fan) Maximun Number of Fans 9 Water Cooling Support
Top 360mm / 280mm / 240mm / 140mm / 120mm M/B Side 280mm / 240mm / 140mm / 120mm PSU Shroud 240mm / 120mm Bottom - Rear 140mm / 120mm RGB Sync with M/B Yes Max. Graphics Card Length
Horizontal 420 (mm) / 16.5 (in) (Only fans at the M/B Side)
330 (mm) / 13 (in) (Radiator with fans at the M/B Side)Vertical 450 (mm) / 17.7 (in) Max. CPU Cooler Height 180 (mm) / 7.1 (in) Max. PSU Length 250 (mm) / 9.8 (in)
