Thông số kỹ thuật
| Model Name |

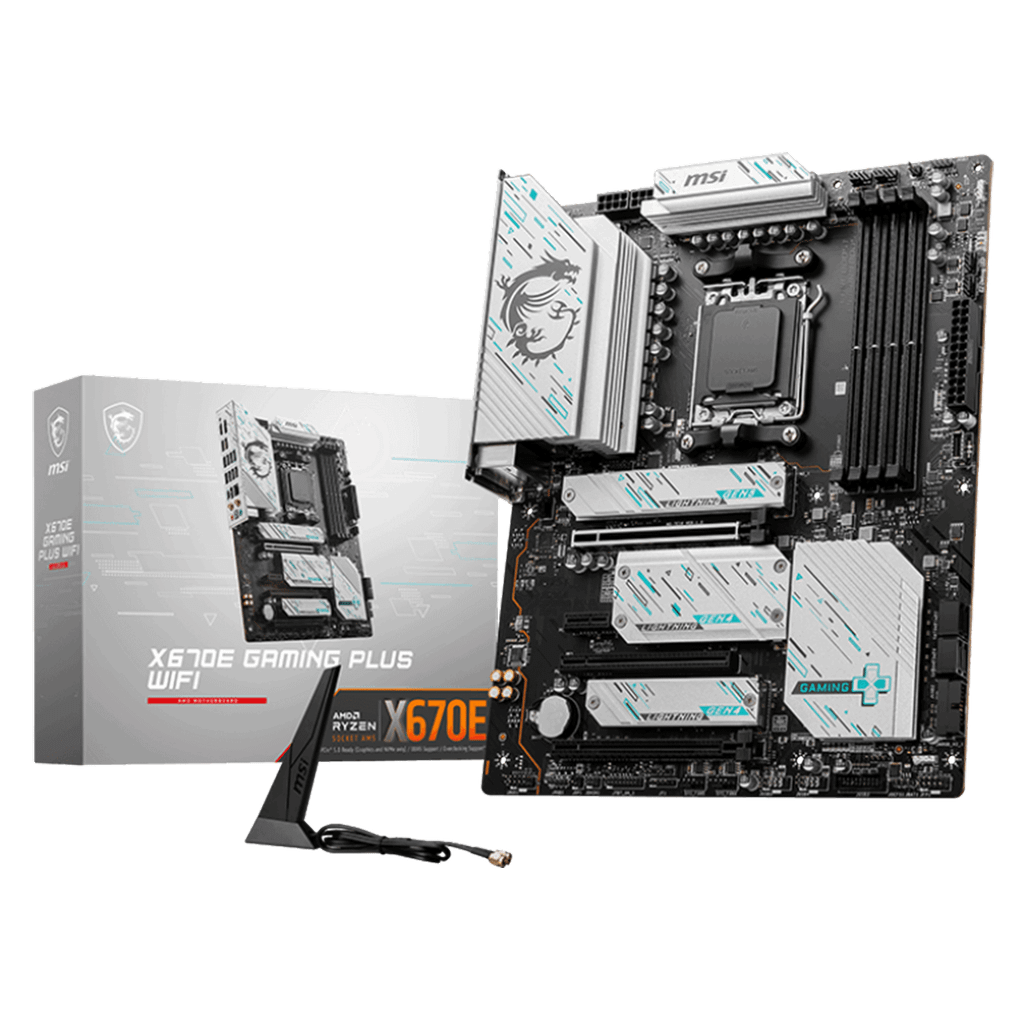

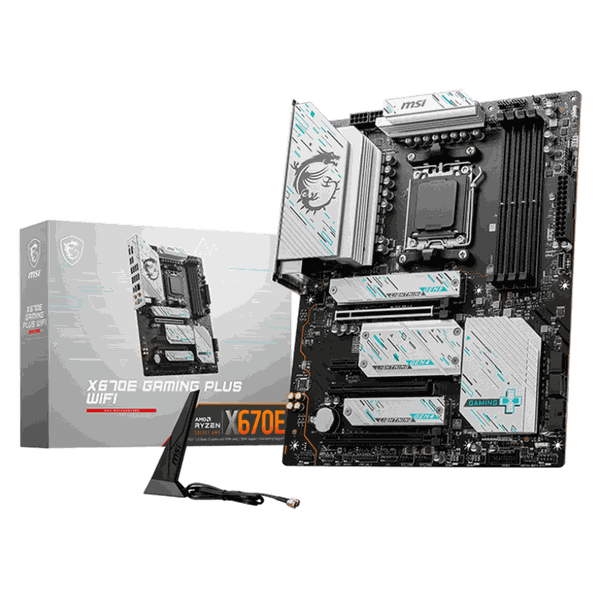

X670E GAMING PLUS WIFI |
| CPU Support |
Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors |
| CPU Socket | AM5 |
| Chipset | AMD X670 Chipset |
| Expansion Slots |
1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x16 slot, 1x PCIe 3.0 x1 slot |
| Display Interface |
Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics |
| Memory Support |
4 DIMMs, Dual Channel DDR5 |
| Storage |
1x M.2 Gen5 x4 128Gbps slot, 3x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gb/s ports |
| USB Ports |
1x USB 3.2 Gen 2x2 20Gbps (1 Type-C), 4x USB 3.2 Gen 2 10Gbps (1 Type-C + 3 Type-A), 8x USB 3.2 Gen 1 5Gbps (8 Type-A), 8x USB 2.0 (8 Type-A) |
| LAN |
RTL8125BG 2.5Gbps LAN |
| WiFi / BT |
AMD® Wi-Fi 6E, Bluetooth 5.3 |
| Audio |
8-Channel (7.1) HD Audio with Audio Boost |
