Thông số kỹ thuật
⚙ THÔNG SỐ CƠ BẢN:
- Support Intel LGA1700
- 2 x DDR4 memory slot，Max support 64GB
- Support Dual channels DDR4 3200/2666/2400/2133MHz
- 4xSATA3.0 6Gbps interfaces
- 1xPCI Expressx164.0@5.0，1xPCI Expressx4 4.0
- 2xM.2 22110 NVME PCIE X4 4.0
- 10-phase power supply
- 1 xCOMPIN，1x Debug pin
-
MÔ TẢ SẢN PHẨMBẢNG THÔNG SỐ CHI TIẾT:

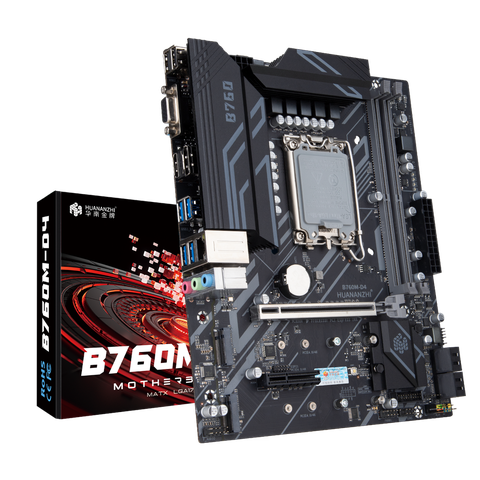

Model HUANANZHI B760M-D4 Motherboard. Main chipset Intel B760 CPU Socket Support Intel LGA1700 Memory slot 2 x DDR4 memory slot Memory standard Support Dual channels DDR4 3200/2666/2400/2133MHz (Supports XMP overclocking/CPU dependent)，Max support 64GB Storage interface 4xSATA3.0 6Gbps interfaces Expansion Slots 1xPCI Expressx16 4.0，1xPCI Expressx4 4.0 Expansion interface 2xM.2 22110 NVME PCIE X4 4.0 Soud Track Realtek High Fidelity Audio Network Card Realtek Gigabit Network Card Power interface 24pin+8pin FAN PIN 1xCPU_FAN PIN，2xSYS_FAN PIN power supply 10-phase power supply PCB layers 6-layer PCB Dimension 235*195MM M-ATX Rear panel interface 2xUSB3.2 Gen2 10Gb/s，2xUSB2.0 480Mbps，1xVGA，1xHDMI2.1，1xDP1.4 ，1x Network card interface，1x3-hole audio interface Front panel interface 1 x USB2.0 PIN 480Mbps，1 x USB3.2 PIN Gen1x15Gb/s，1 x Front audio PIN，1 xCOMPIN，1x Debug pin Support system Windows10 Windows11 BIOS AMI UEFI BIOS Packing list 1 x Motherboard，1x SATA data cable，1xWarranty card
