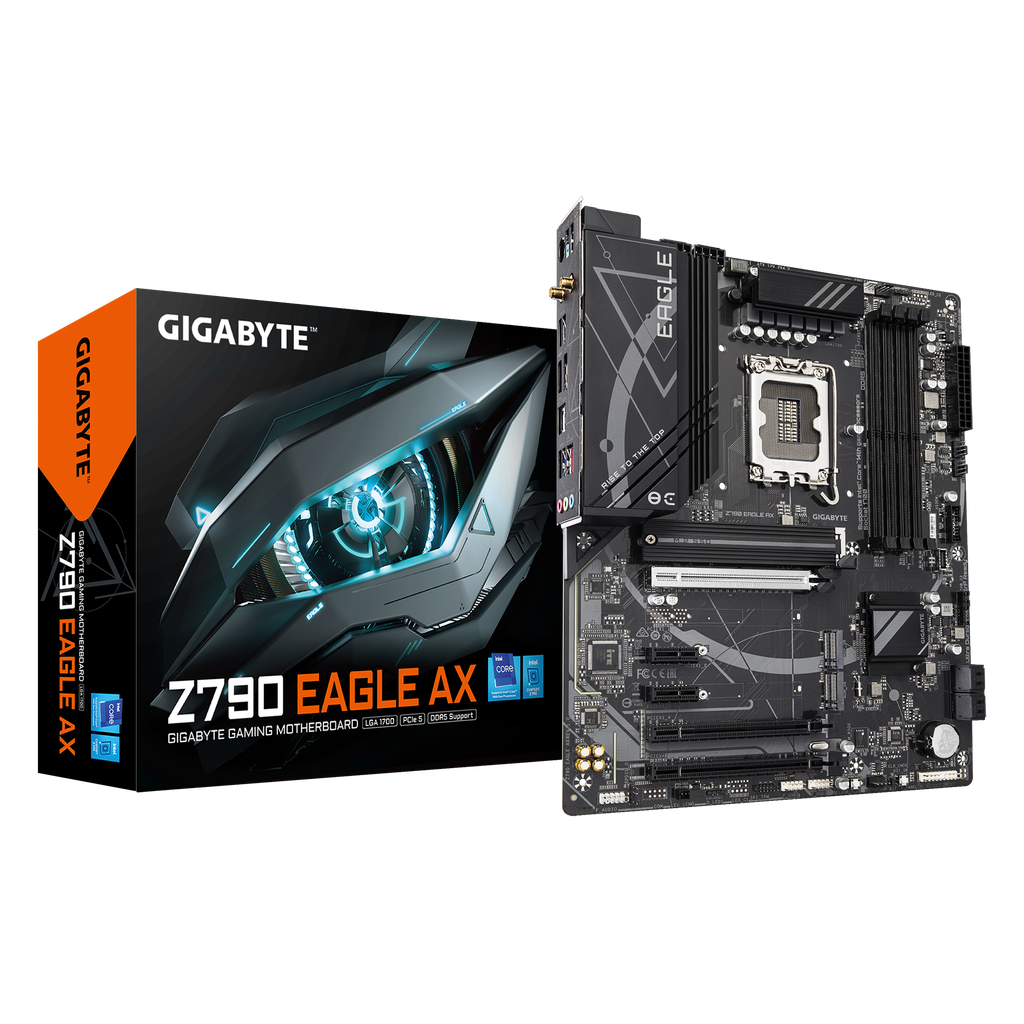

Mainboard Gigabyte Z790 EAGLE AX (rev. 1.0)

LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors. L3 cache varies with CPU.

Intel® Z790 Express Chipset

4 x DDR5 DIMM sockets, up to 192 GB, dual channel, support for ECC/Non-ECC Un-buffered DIMM, Extreme Memory Profile (XMP) modules.

Intel® HD Graphics support: HDMI port (4096x2160@60 Hz), DisplayPort (4096x2304@60 Hz).

Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, support for S/PDIF Out

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Intel® Wi-Fi 6E AX211, Realtek® Wi-Fi 6E RTL8852CE, Bluetooth 5.3, support for 11ax 160MHz wireless standard.

1 x PCI Express x16 slot (PCIe 5.0), 1 x PCI Express x16 slot (PCIe 4.0), 1 x PCI Express x16 slot (PCIe 3.0), 2 x PCI Express x1 slots (PCIe 3.0)

1 x M.2 connector (PCIe 4.0 x4/x2), 1 x M.2 connector (PCIe 4.0 x4/x2), 1 x M.2 connector (SATA & PCIe 4.0 x4/x2), 4 x SATA 6Gb/s connectors. RAID 0/1/5/10 support for NVMe & SATA devices.

1 x USB Type-C® (USB 3.2 Gen 2), 1 x USB Type-C® (USB 3.2 Gen 1), 1 x USB 3.2 Gen 2 Type-A, 6 x USB 3.2 Gen 1, 6 x USB 2.0/1.1

1 x 24-pin ATX main power, 2 x 8-pin ATX 12V power, 1 x CPU fan header, 3 x system fan headers, 4 x SATA 6Gb/s, 1 x front panel header, 1 x USB Type-C®, 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 headers

1 x PS/2 keyboard/mouse, 1 x USB Type-C® (USB 3.2 Gen 2), 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 2 x SMA antenna connectors, 1 x HDMI, 1 x DisplayPort, 1 x RJ-45, 3 x audio jacks

Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control

1 x 256 Mbit flash, licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup

Norton® Internet Security (OEM version), LAN bandwidth management software

Windows 11 64-bit, Windows 10 64-bit

ATX Form Factor; 30.5cm x 24.4cm
