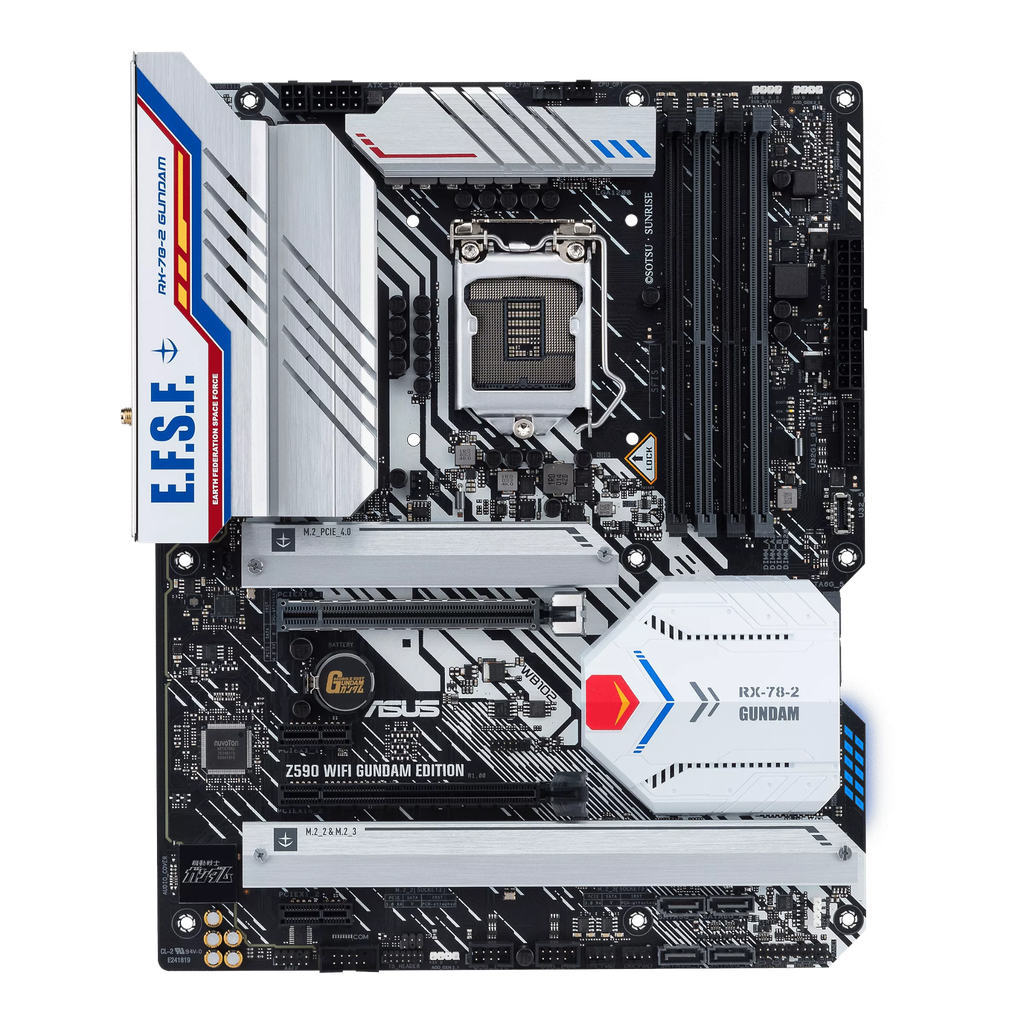

Model: Z590 WIFI GUNDAM EDITION
CPU Support: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors. Supports Intel® 14 nm CPU. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0.
Chipset: Z590
Memory:
- DDR4 Memory Support up to 5133MHz (OC)
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem II
Graphics:
- 1 x HDMI 2.0
- 1 x DisplayPort 1.4
- 1 x HDMI™ 2.0 (Only Intel® 11th processors)
- VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots:
- 1 x PCIe 4.0/3.0 x16 slot (Intel® 11th processors support PCIe 4.0 x16)
- 1 x PCIe 3.0 x16 slot (Intel® Z590 Chipset)
- 2 x PCIe 3.0 x1 slots
- Supports PCIe bandwidth bifurcation for RAID on CPU function.
- Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.
Storage:
- Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
- RAID function for PCIe mode SSD in Intel® Rapid Storage Technology
- To enable Intel® Optane™ Memory, it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
Ethernet: 1 x Intel® 2.5Gb Ethernet
USB:
- Rear USB: Total 7 ports
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB: Total 7 ports
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio:
- Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Shielding
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
- Audio cover
Back Panel I/O Ports:
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x ASUS Wi-Fi Module
- 1 x Intel® I225-V 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
- 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors:
- Various headers for fan, power, storage, USB, and more.
Special Features:
- ASUS PROTECTION
- ASUS Q-Design
- ASUS Thermal Solution
- ASUS EZ DIY
- AURA Sync
Software Features:
- ASUS Exclusive Software
- UEFI BIOS
BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Accessories:
- Cables: 2 x SATA 6Gb/s cables
- Miscellaneous: 1 x ASUS Wi-Fi moving antenna, 2 x M.2 Rubber Packages, 1 x M.2 SSD screw package, 1 x GUNDAM DIY sticker
- Installation Media: 1 x Support DVD
- Documentation: 1 x User manual
Form Factor: ATX, 30.5cm x 24.4cm
