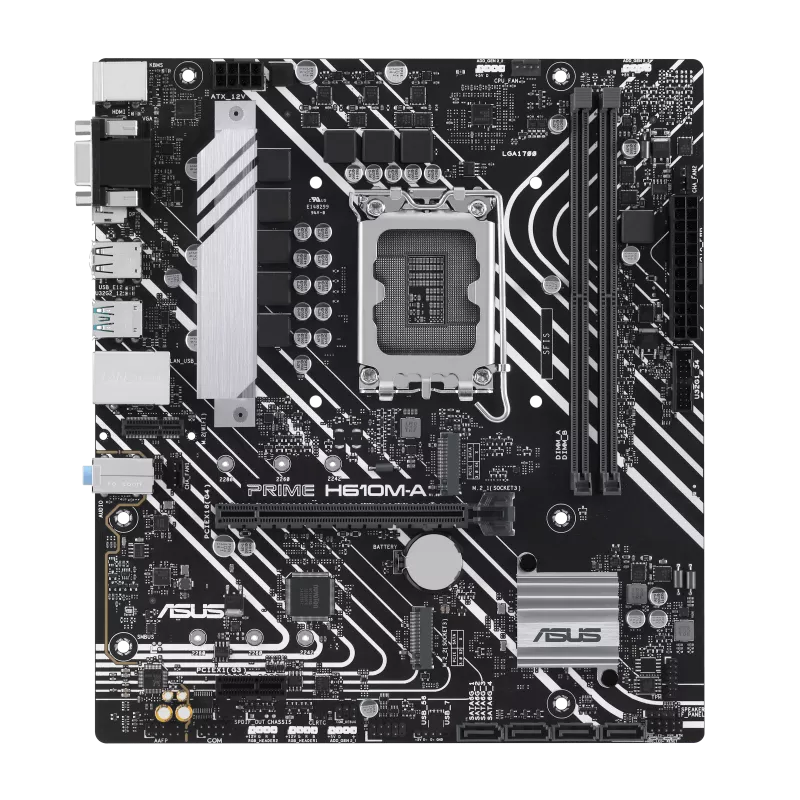

| Model | PRIME H610M-A-CSM |
| Loại CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Hỗ trợ CPU | Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset | Intel® H610 Chipset |
| Số khe DIMM | 2 x DIMM slots |
| Dung lượng tối đa | Max. 96GB |
| Loại bộ nhớ | DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory |
| Kiến trúc bộ nhớ | Dual Channel Memory Architecture |
| Hỗ trợ XMP | Supports Intel® Extreme Memory Profile (XMP) |
| Cổng kết nối đồ họa | 1 x DisplayPort, 1 x VGA port, 1 x HDMITM port |
| USB sau | Rear USB (Total 6 ports), 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) |
| USB trước | Front USB (Total 5 ports), 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports 1 USB 2.0 port, 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| USB sau | 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) |
| Kết nối mạng | 1 x Intel® 1Gb Ethernet port |
| Cổng hiển thị | 1 x DisplayPort, 1 x VGA port, 1 x HDMITM port |
| Kết nối quạt và làm mát | 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers |
| Kết nối điện | 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector |
| Lưu trữ | 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports |
| USB | 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports 1 USB 2.0 port, 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Form Factor | mATX Form Factor, 9.6 inch x 8.5 inch ( 24.4 cm x 21.6 cm ) |
